WOODWARD Generator Controls & Power Management Systems
Woodward has a legacy as the "benchmark" in the distributed power generation industry for high-quality, reliable synchronizers, load sharing controls and generator controllers. These modern integrated engine-generator controllers provide full control and protection capability for a multitude of generator applications -- from isolated, emergency standby gensets to parallel operation of multiple generators in complex distribution systems.
Barcol-Air Engineering is the authorized distributor for Woodward products in the region, including Vietnam.
https://www.woodward.com/support/industrial-service-and-support/sales-inquiries/
More for information, please visit: http://www.woodward.com/

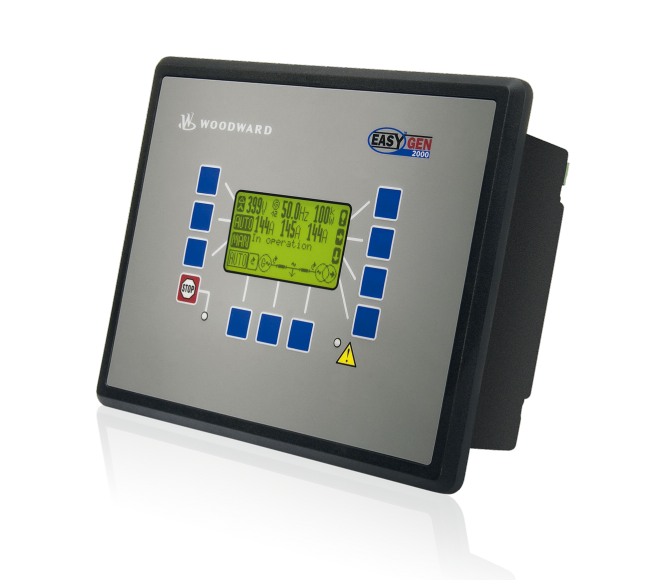

Easygen 2000 Series
Easygen 2300 2200 2500 (P1, P2 versions)
- Purpose: Compact, affordable genset control and protection for load sharing.
- Capacity: Supports up to 16 gensets in island operation or single-unit parallel with utility.
- Load Management: Integrated load-dependent start/stop programming.
- Defines genset on/off based on changing load demands.
- Works with mixed engine sizes for optimal fuel efficiency and spinning reserve.
- Interfaces:
- CANopen: Peer-to-peer load sharing.
- J1939: Engine ECU communication.
- Modbus RTU: PLC, HMI, and SCADA integration.
- Modem: Remote control and programming via Woodward ToolKit software.
EASYGEN 2000 series datasheet download
For list of part numbers available, please click on read more.
Easygen 3000 XT series
Easygen 3200XT - 3100XT - 3500XT - 3400XT (P1, P2, LT versions)
- Purpose: Advanced genset paralleling and power management (easYgen-3000XT Series).
- Software: Configurable, customizable standard software.
- Connectivity: Fast, secure interfacing with controls and communication systems.
- Hardware: Drop-in replacement for easYgen-3000 Series.
- Applications:
- Controls gensets of all sizes for emergency backup to complex multi-genset systems.
- Supports single genset to 32 gensets in islanded/parallel operation with utility.
- Features:
- Manages start/stop, control, and protection for genset, breaker, and utility.
- LogicsManager™ and AnalogManager™ for flexible programming, reducing PLC need.
- Integrates with SCADA/PLC systems.
For list of part numbers available, please click on read more.
Read more: Woodward Easygen 3000 XT (3200XT - 3100XT - 3500XT - 3400XT)

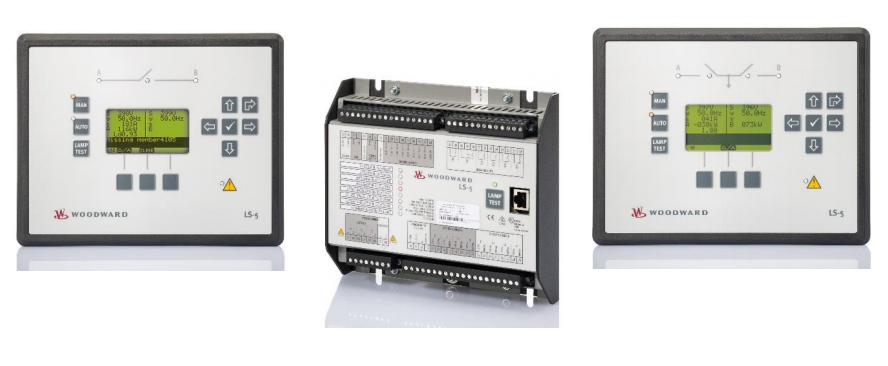

Woodward LS-5 Breaker control
(LS-521 LS-511 - LS-522 LS-512)
-
Purpose: LS-5 Series relays for synchronizer control, mains decoupling, and protection.
-
Applications:
-
Independent synch check to complex power management with multiple utility feeds, bus tie-breakers, group breakers.
-
Works with easYgen-3400XT/3500XT genset controllers.
-
-
Connectivity: Single CAN bus for AC measurements, I/O states, flags.
-
-
LS-5x1 Features:
-
Manages synchronization, loading, unloading per bus segment.
-
-
-
LS-5x2 Features:
-
Manages load bus with mains (MCB) and generator group breaker (GGB).
-
Supports transfer switch control with external supervisory control.
-
Benefits: Minimizes wiring, enhances versatility for OEMs, packagers, integrators.
For list of part numbers available, please click on read more.
Read more: Woodward LS-5 Breaker control LS-521 LS-511 - LS-522 LS-512
ATS automatic transfer switch DTSC 200 - 200A - 50
-
DTSC-200:
-
Ultimate ATS control for new builds/retrofits.
-
Configures to Utility-to-Generator, Generator-to-Generator, Utility-to-Utility.
-
Supports open, delayed, closed-transition with synch-check.
-
Features: transfer inhibit, source priority, load shed, motor disconnect, elevator pre-signal, engine exerciser timers.
-
-
DTSC-200A:
-
Controls power transfer for critical applications (hospitals, data centers).
-
Configurable for Main-Gen, Gen-Gen, Main-Main systems.
-
Supports open, delayed, closed-transition with synch-check (<100ms overlap or extended paralleling).
-
Uses circuit breakers or latching contactors.
-
-
DTSC-50:
-
Economical ATS for single-generator emergency standby.
-
Detects utility failure, starts generator, transfers load.
-
Open-transition re-transfer with engine cool-down.
-
Supports 1Ph2W, 1Ph3W, 3Ph3W, 3Ph4W systems.
-
DTSC 200 datasheet download
DTSC 200A datasheet download
DTSC 50 datasheet download
For a list of part numbers available, please click on read more.
Read more: ATS automatic transfer switch DTSC 200 - 200A - 50
Easygen GC3400XT Group Controller
Introducing the new Easygen GC3400XT Group Controller as per attached product specification.
Each Group Controller can controls up to 31 units of Easygen 3500XT with option K51. You can connect up to 8 units of Group Controller GC3400XT which able to connect up to 248 units of Easygen 3500XT with option K51.
Woodward APECS linear actuators provide proportional fuel control for construction, industrial, and agricultural equipment, forming the foundation of full electronic governing systems. These actuators are suitable for speed governing on generator sets, forklifts, pump sets, wood chippers, pleasure boats, and many types of off-road vehicles.
The actuators are easily mounted near the fuel system and direct connected to the fuel control rod or lever. In most installations, the normal rotary-to-rotary connection is eliminated, resulting in a more trouble-free and accurate control system.
Whatever your force, travel, terminal connection, or mounting requirements, you’ll find a Woodward actuator to meet your needs. Or, we can custom design one for your exact specifications.
For more information, please visit here.
2301E
Woodward’s 2301E provides load sharing and speed control of generators being driven by diesel or gaseous engines. With built-in flexible configuration software, application variations can now be selected using an external computer (PC). Changing the application to accommodate engine speed range, gear teeth, and selection of forward or reverse acting is simply a matter of software setup.
For more information, please visit here.
Woodward DPG digital controllers for diesel or gas-fueled engines perform across a wide speed range and allow adjustment of set speed and gain with a built-in user interface. Independent programmable proportional, integral, and derivative gains provide custom governor response to diverse engine applications. The COMM port provides access to all other controller settings, allowing adaptation to each application during service and initial configuration. Internal FAILSAFE reacts instantly to loss of engine speed signal and allows actuator to return to minimum fuel.
For more information, please visit here.
DSLC-2™
The Woodward DSLC-2™ (Digital Synchronizer and Load Control) is a microprocessor-based synchronizer and load control designed for use on three-phase AC generators. The DSLC-2 combines synchronizer, load sensor, load control, dead bus closing system, VAR, power factor and process control, all in one powerful package.
For more informationon the DSLC, please visit here.
The Woodward MSLC-2™ is a microprocessor based load control designed for three-phase electric power generation sites equipped with our DSLC-2™ (Digital Synchronizer and Load Controls). Woodward combines the original MSLC with a decade of application experience, to develop the new MSLC-2.
For more information on the MSLC, please visit here.
The 2301A Speed Control controls the speed or load of diesel or gas engines, or steam or gas turbines. The unit provides control in the isochronous mode, with droop available through an externally-wired potentiometer. The isochronous mode is used for constant speed of the controlled prime mover as long as it is able to provide power to satisfy the load.
For more information, please visit here.
