ATS automatic transfer switch DTSC 200 - 200A - 50

DTSC-200

Woodward’s DTSC-200 is the ultimate control for new ATS (automatic transfer switch) builds and retrofits. A complete measurement and protection package, it easily configures to Utility-to-Generator, Generator-to-Generator, or Utility-to-Utility systems for open, delayed, or closed-transition transfer with synch-check to ensure the smoothest possible transfer.

High-end features like transfer inhibit, source priority selection, load shed, motor load disconnect, elevator pre-signal, and engine exerciser timers come standard in this incredibly versatile, cost-effective control.

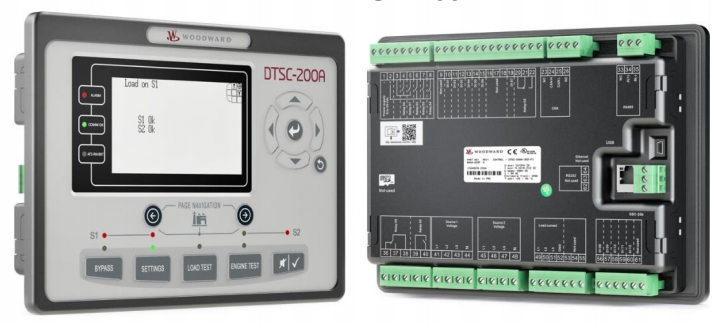

DTSC-200A

The DTSC-200A (Digital Transfer Switch Control) controls the transfer of electrical power from one source to
another for hospitals, data centers, office buildings, manufacturing plants and similar where lights out is not an
option. The extremely versatile DTSC-200A ATS controller is easily configured for a wide range of automatic
transfer switch applications including Main-Gen, Gen-Gen or Main-Main systems using circuit breakers or latching contactors. Source transfer can be performed as open, delayed, or closed transition with in-phase monitoring (synch check) that can be enabled for all transition types to ensure safe transfer. The closed transition overlap time can be limited to less than 100ms for momentary, make-before-break transfers, or extended indefinitely
for paralleling via discrete input

DTSC-50

The DTSC-50 is an economic solution intended for emergency stand-by applications with a single generator. When it detects a
utility failure it commands the generator to start and
transfers the load to the emergency source. When utility power is restored it performs an open-transition retransfer and allows the engine to cool-down before
stopping. It can be utilized in 1Ph2W, 1Ph3W, 3Ph3W
and 3Ph4W Systems.

Part numbers list:

84401867 DTSC-200-51B (1A)
84401868 DTSC-200-55B (5A)
84401894 DTSC-50-50B
84402297 DTSC-200A (5A)
