Easygen 2000 Series
Easygen 2300 2200 2500 (P1, P2 versions)
The easYgen-2000 Series is a compact, affordable genset control and protection package for load sharing up
to 16 gensets in island operation, or parallel operation of a single unit with a utility. Its integrated load dependent start/stop programming allows you to define how gensets are brought on- and off-line to support changing
load demands. It equally works with a mix of different sized engines, so you can maintain the spinning reserve
you need while optimizing fuel efficiency.
The easYgen-2000 Series works with many common industrial interfaces: CANopen for peer-to-peer load sharing; J1939 for engine ECU; Modbus RTU for PLC, HMI, and SCADA; and modem for remote control and programming using Woodward ToolKit software.
Easygen 2000 series application mode for typical paralleling with main.

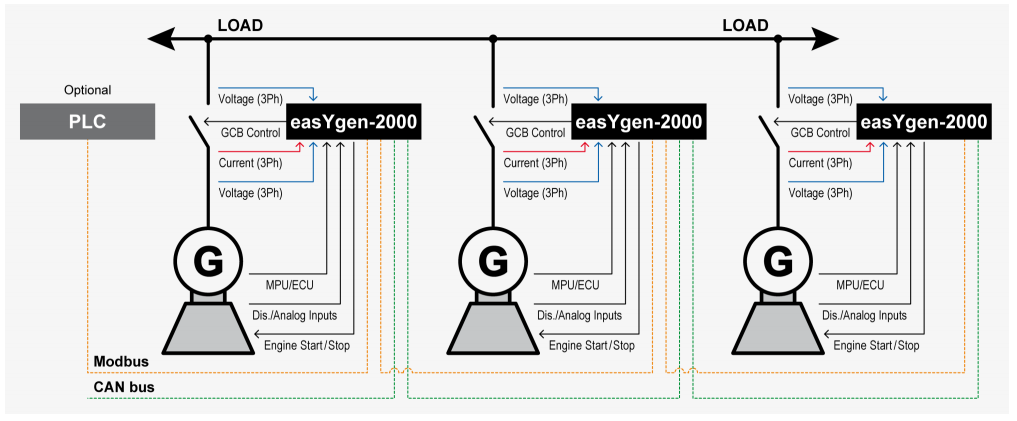

The following example describes the configuration of a typical isolated parallel operation and load-dependent start/stop (LDSS).
P/N: 84402058 EASYGEN 2300-5/P2
5A CT inputs / front panel mounting with display
1A CT inputs / front panel mounting with display
P/N: 84401855 EASYGEN 2200-5/P1
5A CT inputs / front panel mounting with display
P/N: 84401858 EASYGEN 2200-1/P2
5A CT inputs / front panel mounting with display
P/N: 84401860 EASYGEN 2500-1/P1
1A CT inputs / front panel mounting with display
P/N: 84401884 EASYGEN 2500-5/P1
